TB851 CEX-Bus Terminator
With 25-pin DB25S female connector. With screw fixing.
When Communication Interface units are mounted on
adjacent DIN rails, they are connected by means of a CEX-Bus
extension cable (TK850) and terminated using a TB851
CEX-Bus terminator.

TB850 CEX-Bus Terminator
With 25-pin DB25P male connector. With screw fixing.
A TB850 CEX-Bus terminator must always be installed on the
last unit on the CEX bus.

TB 870F, Terminal Block for serial interface

F110 - TB 711F, CPU Terminal Base24 VDC, 1x Fieldbus slot, Ethernet RJ45For PM 783F

TA521, Battery for RAM buffering, Button Cell, Lithium, For PM 783F

TA 924F, Dummy Coupler Module, cover for unused slots

TA 724F, Dummy Coupler Module, cover for unused slots

SD 812F-Z, Power Supply 24Vdc

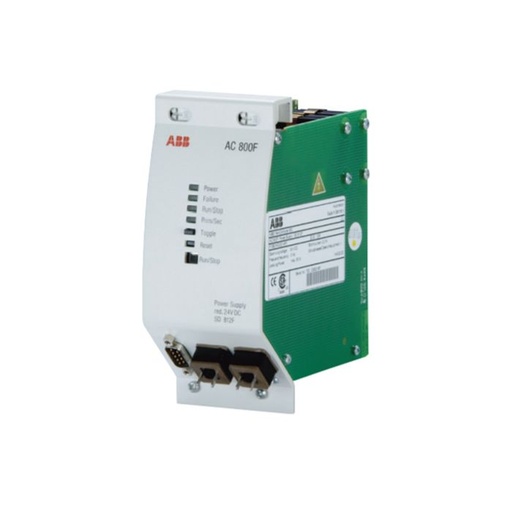

SD 812F, Power Supply, Input voltage 24Vdc, Output voltage 5Vdc

SB822, External DIN-rail mounted rechargeable battery unit

24VDC Power Supply, ABB

The power supply filter type BP901S is not required.
SA920N is the functional replacement for SA910N
Do not mix SA910N with SA920N for redundancy.

The power supply filter type BP901S is not required.
SA920B is the functional replacement for SA910B
Do not mix SA910B with SA920B for redundancy.

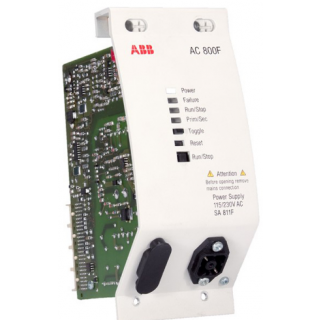

SA 811F-Z, Power Supply 115/230 Vac

The AC 800F modules are supplied with 5 VDC / 5.5 A and 3.3 VDC / 6.5 A by SA 811F. The power supply has open-circuit, overload and sustained short-circuit protection. The electronically controlled output voltage provides high stability and
low residual ripple.

450 Mhz and 256 MB. Package including:
- 2 pcs PM891K01 Processor Unit
- 1 pcs TK850V007 CEX-bus Extension Cable
- 1 pcs TK855 RCU Data Link Cable
- 1 pcs TK856 RCU Control Link Cable
- No license included

450 Mhz and 256 MB. Package including:
- PM891 CPU Module
- TB850, CEX-bus terminator
- TB853, RCU Control Link Terminator
- No license included

PM866AK02
133 Mhz and 64 MB. Package including:
- 2 pcs PM866A, CPU
- 2 pcs TP830, Baseplate, width =115mm
- 2 pcs TB807, ModuleBus terminator
- 1 pcs TK850, CEX-bus expansion cable
- 1 pcs TB851, RCU-Link cable
- 2 pcs Battery for memory backup (4943013-6)
- No license included

133 Mhz and 64 MB. Package including:
- PM866A, CPU
- TP830, Baseplate, width =115mm
- TB850, CEX-bus terminator
- TB807, ModuleBus terminator
- TB852, RCU-Link terminator
- Battery for memory backup (4943013-6)
- No license included

PM862K02, Redundant Processor Unit, 2 pcs PM862 CPU, 32 Mb memory, 67 MHz cpu clock

67 Mhz and 32 MB. Package including:
- PM862, CPU
- TP830, Baseplate, width =115mm
- TB850, CEX-bus terminator
- TB807, ModuleBus terminator
- TB852, RCU-Link terminator
- Battery for memory backup (4943013-6)
- No license included
Only compatible with 800xA 6.0.2, Compact Control Builder
6.0.0-1 and onwards.
Please see Product Update for more information.

Package including:
PM861A, CPU TP830, Baseplate, width =115mm TB850, CEX-bus terminator TB807, ModuleBus terminator TB852, RCU-Link terminator Battery for memory backup (4943013-6

PM860AK01 Processor Unit, 16 Mb memory, 48 MHz cpu clock, 2 ethernet ports, 2 serial RJ45 ports

33 Mhz and 16 MB. Package including:
- 2 pcs PM858, CPU
- 2 pcs TP830, Baseplate, width =115mm
- 2 pcs TB807, ModuleBus terminator
- 1 pcs TK850, CEX-bus expansion cable
- 1 pcs TK851, RCU-Link cable
- 2 pcs Battery for memory backup (4943013-6)
- No license included
Only compatible with 800xA 6.0.2, Compact Control Builder
6.0.0-1 and onwards.
Please see Product Update for more information.

33 Mhz and16 MB. Package including:
- PM858, CPU
- TP830, Baseplate, width =115mm
- TB850, CEX-bus terminator
- TB807, ModuleBus terminator
- TB852, RCU-Link terminator
- Battery for memory backup (4943013-6)
- No license included
Only compatible with 800xA 6.0.2, Compact Control Builder
6.0.0-1 and onwards.
Please see Product Update for more information.
