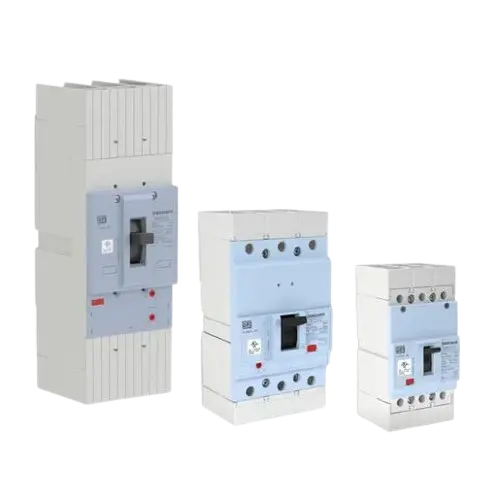

DWB Circuit Breakers: (Overview & Key Features)
Compact and Flexible Design
- The DWB series is built to save panel space with compact frames offering rated currents from 15 A up to 600 A, depending on the model—spanning DWB250, DWB400 and DWB600.
- Internal accessories (e.g. auxiliary contacts, shunt or undervoltage releases) are modular and user-installable, allowing flexibility across multiple frame sizes—especially 160, 250, 400, and 600.
Protection & Trip Units
-
Models offer both fixed and adjustable trip unit options. Common trip types include:
- DX: Fixed thermal + fixed magnetic
- GA/GF/MF/MA: Generator or motor applications with adjustable trips
- ET: For distribution/generator protection with electronic trip capabilities .
- For UL-listed units, such as DWB160, breakers are available in Standard (80% rated, “E”) and Premium (100% rated, “H”) configurations .
High Short-Circuit Interrupting Capacity
-
The DWB line is built for high performance:
- Some models feature interrupting capacities up to 80 kA at 380/415 V .
- For the DWB100 series (80% rated), typical ratings are around 14 kA at 480 V (UL).
- Premium (100% rated) versions maintain similar interrupting capacities.
Enhanced Safety & Accessibility
- A transparent front cover allows quick inspection of internal accessories, aiding safety and maintenance.
- Double insulation ensures live parts are isolated from the breaker’s front face (except terminals), reducing touch hazards.
- Compact build and DIN-rail-compatible frames support quick replacement and system integration.
Broad Accessory Support
-
WEG offers a comprehensive range of compatible accessories, including:
- Auxiliary contact blocks (BC)
- Alarm contact blocks (AL, BCAL)
- Shunt release (BD)
- Undervoltage release (BS)
- Mechanical interlocks, padlocking devices
- Panel door rotary handles, phase barriers
- Plus wiring terminals (lugs) included with DWB100 and standard on DWB250, DWB400, and DWB600.
Why Choose WEG DWB?
Advantage | Benefit |
|---|---|
Compact, modular design | Saves space and supports easy customization and scaling. |
Varied trip units | Tailor protection to specific needs — from fixed to adjustable. |
High interrupting capacity | Reliable in high fault scenarios, with ratings up to 80 kA. |
Safety-forward features | Transparent covers and double insulation enhance maintenance safety. |
Extensive accessories | Wide range of field-installable add-ons for adaptability. |
