Application

• • Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
  • Provides a degree of protection from falling dirt, dust, oil and water.

Standards

• • UL 508A Type 12
  • CSA Type 12
  • Complies with
  • • NEMA Type 12
    • IEC 60529, IP54

Construction

• • Formed 10 gauge steel.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Heavy duty body stiffeners are provided for extra rigidity.
  • Reinforced eyebolts are provided for easy enclosure lifting.

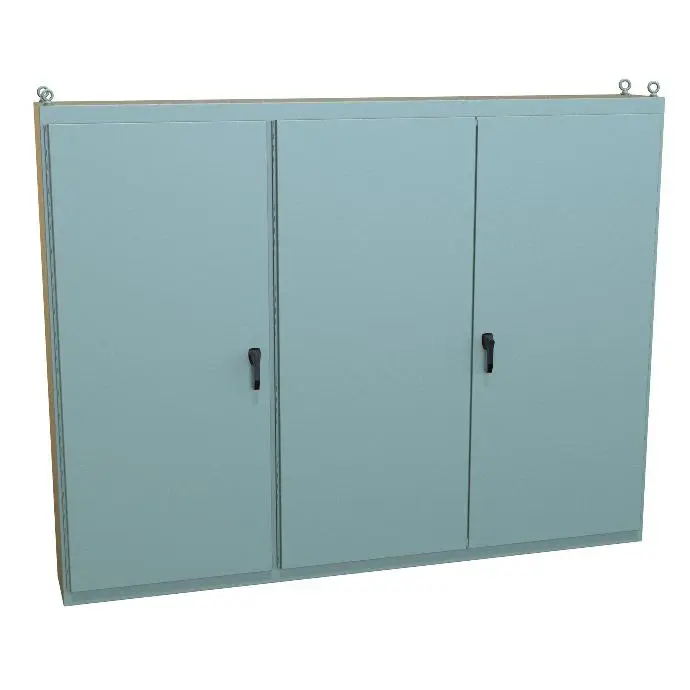

  • Double door openings have gasketed overlapping doors, eliminating the need for a center post.
  • Continuously hinged doors may be removed by pulling the hinge pin.
  • Doors are secured with a three point padlocking handle.
  • Latch rods are equipped with rollers for easier door closing.
  • Oil resistant gaskets are permanently secured.
  • Removable 10 gauge inner panels are included in the enclosures.
  • 3 door units have 2 panels (34" x 78" and 70" x 78").
  • 4 door units have 2 panels (70" x 78" each).
  • Secondary doors have mechanical interlock and cannot be opened unless the main door is open.
  • Panel supports are provided in enclosures for easy panel installation.
  • Collar studs are provided for mounting inner panels.
  • A grounding stud is provided in the enclosure for each door and a bonding stud is pro­vided on the door.
  • A literature pocket is provided for the inside of the door.

Finish

• • Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating.
  • Removable inner panel is finished in white powder coating.

Accessories

• • Additional Inner Panels
  • Swing Panel Kit
  • Terminal Kit Assemblies
  • Climate Control
  • General Accessories
