2300 and 4160 VAC Soft Starters

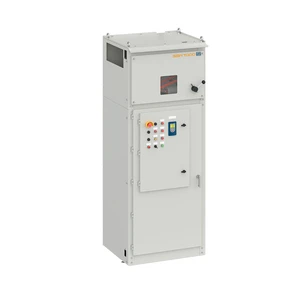

 SSW7000

 WEG’s SSW7000 medium voltage solid-state soft starter is an industrial general-purpose starter package for starting and protecting medium voltage (MV) AC motors. Designed to be rugged, reliable and safe, the SSW7000 is a simple and cost effective solution for demanding applications.

Features

• 4160V and 2300V models in stock

• Four 4160 V and 2300 V models in stock (NEMA 12 and NEMA 3R)         up to 3000 HP (higher voltages and powers available)

• Suitable for service entrance

• Motor protections active in both DOL and RUN modes eliminating           the need for expensive motor protection relays for backup                 protection

• Pump control utilizes a specific algorithm for centrifugal pumps            designed to minimize water hammer and pressure overshoots

• SoftPLC function with license-free software

• Flexible Torque Control (FTC) allows adjusting starting torque limit        curve with three points (ideal for quadratic loads)

• Motor thermal protection via PT100 monitoring available (up to              eight channels)
