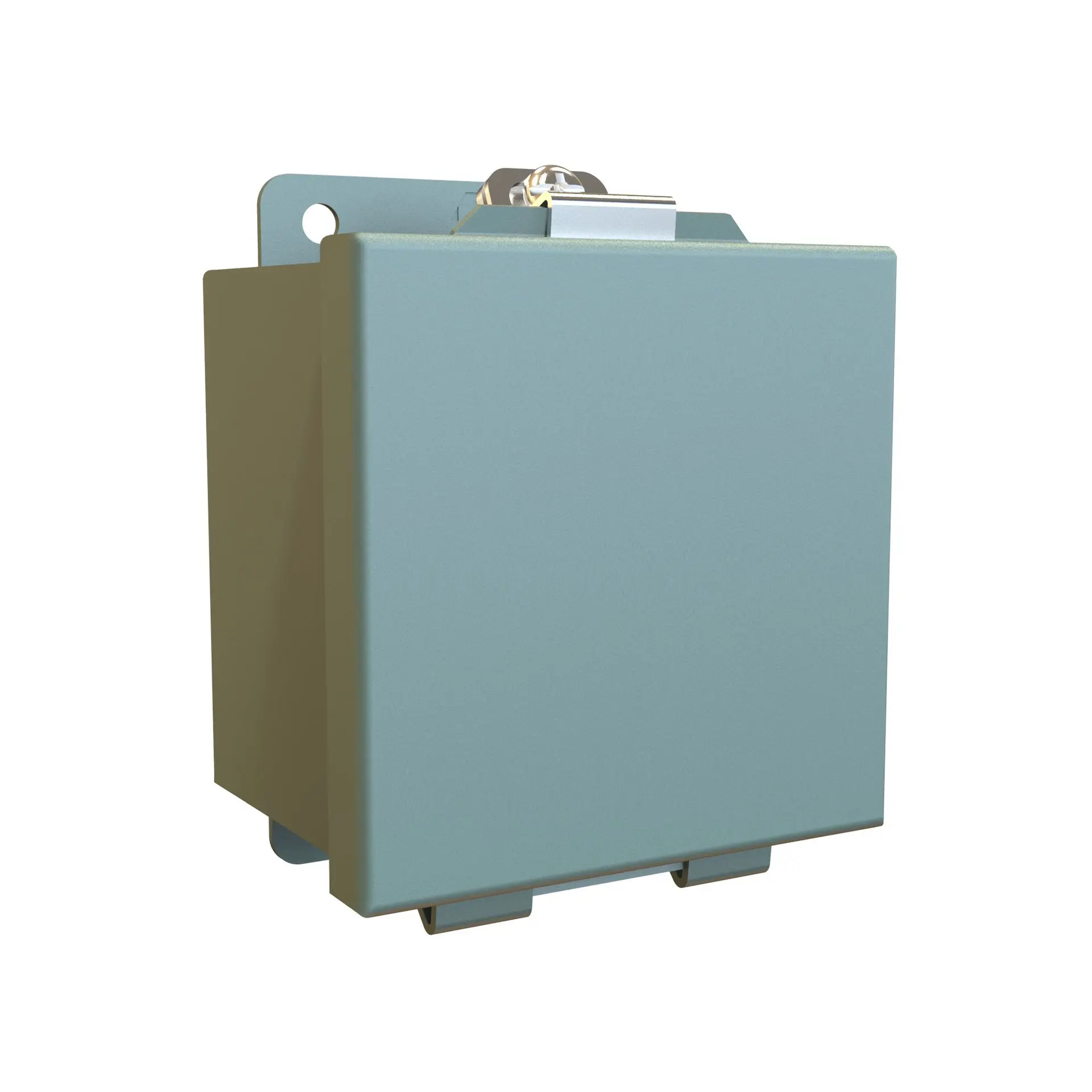

Type 12 Mild Steel Junction Box   1414 Series

Lift Off Door with Clamps

Home / Carbon Steel Enclosures  / 1414 Series



Go to Selection

Application

    • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
    • Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Standards

  • UL 508A Type 12 and 13
  • CSA Type 12 and 13
  • Complies with
    • NEMA Type 12 and 13
    • IEC 60529, IP54

Construction

    • Body and cover are formed from 16 gauge or 14 gauge steel.
    • Smooth, continuously welded seams without knockouts, cutouts, or holes.
    • Formed lip on enclosure to exclude flowing liquids and contaminants.
    • Welded brackets provide for enclosure mounting.
    • Lift off cover has stainless steel clamps and plated steel screws and retained with a plated chain when open.
    • Seamless poured-in place gasket.
    • Models larger than 4"x4" include a removable 14 gauge galvanized inner panel.
    • Internal threaded weld studs are provided for mounting inner panels.
    • A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
    • Grounding and panel mounting hardware provided.

Finish

    • Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
    • Removable inner panel is finished in white powder coating.


Accessories

    • Additional Inner Panels
    • Swing Panel Kit
    • Terminal Kit Assemblies
    • Climate Control
    • General Accessories
Type 12 Junction Box







1414 Series

ANSI 61 Gray Enclosure Panel

Part No. H (in) W (in) D (in) Panel H (in) Panel W (in)
1414A 4.00 4.00 3.00 No Panel
1414C 6.00 4.00 3.00 4.88 2.88
1414G 8.00 6.00 3.50 6.75 4.88
1414A4 4.00 4.00 4.00 No Panel
1414C4 6.00 4.00 4.00 4.88 2.88
1414E 6.00 6.00 4.00 4.88 4.88
1414I 10.00 8.00 4.00 8.75 6.88
1414K 12.00 10.00 5.00 10.75 8.88
1414M6 14.00 12.00 6.00 12.75 10.88
1414O6 16.00 14.00 6.00 14.75 12.88
1414M8 14.00 12.00 8.00 12.75 10.88
1414O10 16.00 14.00 10.00 14.75 12.88
