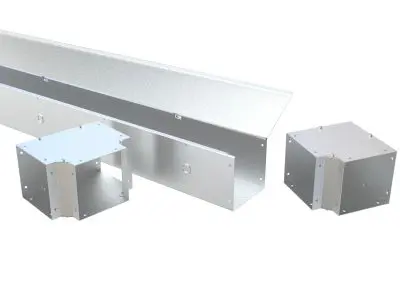

Type 1 Galvanized Lay-In Wireway CWG Series
Wireway & Accessories
Application
- Construction designed to ensure electrical continuity and to permit fast and easy indoor installation of multiple wireway runs.
Standards
- UL-870 Type 1
- cUL Type 1
- Complies with
- IEC 60529, IP20
Construction - Screw Cover
- Formed from 16 or 14 gauge steel
- Flat covers have keyhole screw slots
- Straight sections are provided with adequate concentric knockouts (1/2", 3/4" conduit size)
- Unobstructed interior speeds up laying of cables
- Optional hanger brackets allow for vertical or horizontal mounting
- Joiners sold separately
Construction - Hinge Cover
- Formed from 16 or 14 gauge steel
- Hinge covers are hinged on 24" centers
- Available with or without knockouts
- Straight sections are provided with adequate concentric knockouts (1/2", 3/4" conduit size)
- Knockouts are on 12" centers
- Joiner is included with each straight section
- Unobstructed interior speeds up laying of cables
- Optional hanger brackets allow for vertical or horizontal mounting
Finish
- Sections, components and Couplings are unpainted galvanized
Part Details Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
Screw Cover - Straight Section
Units shown: inches / millimeters
Accessories
2.5 x 2.5 | 4 x 4 | 6 x 6 | 8 x 8 | 10 x 10 | 12 x 12 | ||
| Elbow 90 degrees | ||||||
| Elbow 45 degrees | ||||||
| Tee Fitting | ||||||
| Cross Fitting | ||||||
| Reducer 4 x 4 to 2.5 x 2.5 | ||||||
Reducer 6 x 6 to 4 x 4 | |||||||
Reducer 8 x 8 to 6 x 6 | |||||||
Reducer 10 x 10 to 8 x 8 | |||||||
Reducer 12 x 12 to 10 x 10 | |||||||
| Bracket Hanger Wall Type | CWHW2G | CWHW4G | CWHW6G | CWHW8G | CWHW10G | CWHW12G |
| Closing Plate | ||||||
| Closing Plate w/o Knockouts | ||||||
| Adapter (Box Connector) | ||||||
| Joiner | ||||||
| Telescope Fitting |
