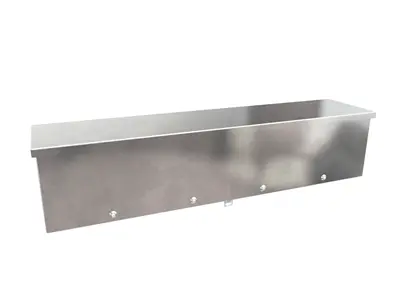

Type 3R Galvanized Gutter Trough   C3RWTG Series

Home / Wireway and Trough



Application

        • Designed for use to protect multiple wiring junctions in outdoor environments against the ingress of rain, sleet, snow and the external formation of ice.

Standards

  • UL-870 Type 3R
  • CSA Type  3R
  • Complies with
    • NEMA Type 3R
    • IEC 60529, IP24

Construction

  • Formed and spot welded from 14 or 16 gauge galvanized steel
  • Drip shield top design protects the enclosure against rain, snow or sleet
  • Embossed mounting holes on back of enclosure
  • Slip on removable front cover is secured with screws
  • Padlocking hasp
  • To fully comply with UL870 - 2008 requirements a bonding stud is provided on the cover and a ground stud is provided in the enclosure
  • A #10 AWG - 12" grounding strap with crimped on ring terminals is also provided to comply with UL requirements

Finish

  • Unpainted galvanized steel.








Tables Side by Side
 Part Number  Height  Depth  Length
 C3RWT412G     4.00  4.00  12.00
 C3RWT418G  4.00  4.00  18.00
 C3RWT424G  4.00  4.00  24.00
 C3RWT436G  4.00  4.00  36.00
 C3RWT448G  4.00  4.00  48.00
 C3RWT460G  4.00  4.00  60.00
 C3RWT472G  4.00  4.00  72.00
 C3RWT612G  6.00  6.00  12.00
 C3RWT618G  6.00  6.00  18.00
 C3RWT624G  6.00  6.00  24.00
 C3RWT636G  6.00  6.00  36.00
 C3RWT648G  6.00  6.00  48.00
 C3RWT660G  6.00  6.00  60.00
 C3RWT672G  6.00  6.00  72.00
 C3RWT812G  8.00  8.00  12.00
 C3RWT824G  8.00  8.00  24.00
 C3RWT836G  8.00  8.00  36.00
 C3RWT848G  8.00  8.00  48.00
 C3RWT860G  8.00  8.00  60.00
 Part Number  Height  Depth  Length
 C3RWT872G  8.00  8.00  72.00
 C3RWT896G  8.00  8.00  96.00
 C3RWT8116G  8.00  8.00  116.00
 C3RWT1024G  10.00  10.00  24.00
 C3RWT1036G  10.00  10.00  36.00
 C3RWT1048G  10.00  10.00  48.00
 C3RWT1060G  10.00  10.00  60.00
 C3RWT1072G  10.00  10.00  72.00
 C3RWT1096G  10.00  10.00  96.00
 C3RWT10116G  10.00  10.00  116.00
 C3RWT1224G  12.00  12.00  24.00
 C3RWT1236G  12.00  12.00  36.00
 C3RWT1248G  12.00  12.00  48.00
 C3RWT1260G  12.00  12.00  60.00
 C3RWT1272G  12.00  12.00  72.00
 C3RWT1284G  12.00  12.00  84.00
 C3RWT1296G  12.00  12.00  96.00
 C3RWT12116G  12.00  12.00  116.00
