Application

• • Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
  • All sections and fittings are open on each end to allow wires and cables to be pulled through the wireway.

Standards

• UL-870 Type 1 , 12, 4, 4X (unless marked¹)
• cUL Type  1, 12, 4, 4X (unless marked¹)
• Complies with
• • NEMA Type 1, 12, 4, 4X (unless marked¹)
  • IEC 60529, IP66

Construction

• Bodies and covers are formed from 14 gauge 304 stainless steel with 10 gauge flanges.

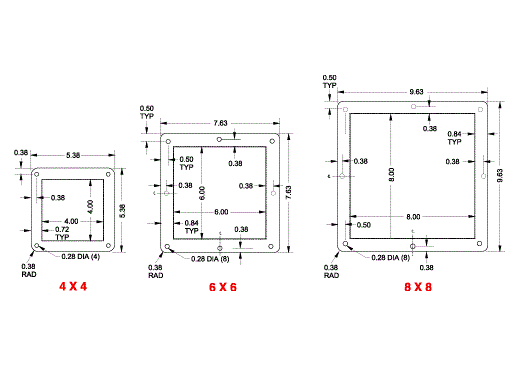

• Continuous flange around wireway ends, requires cables to be pulled through.
• Smooth continuously welded seams.
• Interior surfaces are smooth to prevent wire damage during installation.

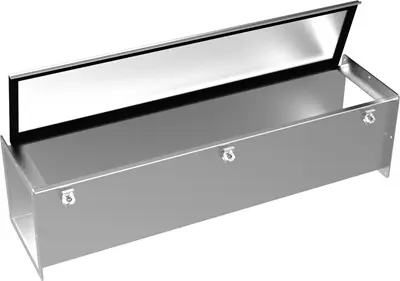

• Butt hinged covers are secured with easily operated screw clamps.
• Oil resistant gaskets are permanently secured.
• Solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
• One gasket kit, complete with hardware is provided with each straight section or fitting.

Finish

• Sections and fittings natural stainless steel with a smooth brushed finish.
