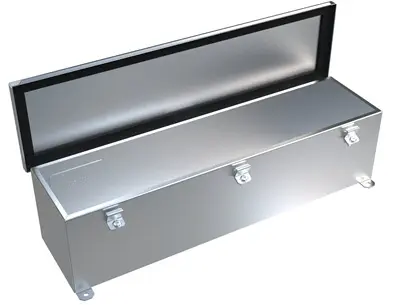

Type 4/12 Wiring Trough   1486 Series

Home / Wireway and Trough



Application

  • Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water.

Standards

  • UL-870 Type 1, 12, 4, 4X
  • CSA Type  1, 12, 4, 4X
  • Complies with
    • NEMA Type 12, 4, 4X
    • IEC 60529, IP66

Construction

  • Formed 14 gauge 304 stainless steel.
  • Smooth continuously welded seams.
  • Butt hinged cover is secured with easily operated stainless steel screw clamps.
  • Oil resistant gaskets are permanently secured.
  • 12 gauge external mounting feet are welded to the back.


Finish

  • Troughs and covers are  natural stainless steel with a smooth brushed finish.








Tables Side by Side
 Part Number  Height  Depth  Length
 1486B12SS            2.50  2.50  12.00
 1486B18SS  2.50  2.50  18.00
 1486B24SS  2.50  2.50  24.00
 1486B36SS  2.50  2.50  36.00
 1486B48SS  2.50  2.50  48.00
 1486B60SS  2.50  2.50  60.00
 1486B72SS  2.50  2.50  72.00
 1486C12SS  4.00  4.00  12.00
 1486C18SS  4.00  4.00  18.00
 1486C24SS  4.00  4.00  24.00
 1486C30SS  4.00  4.00  30.00
 1486C36SS  4.00  4.00  36.00
 1486C48SS  4.00  4.00  48.00
 1486C60SS  4.00  4.00  60.00
 1486C72SS  4.00  4.00  72.00
 1486D12SS  6.00  6.00  12.00
 Part Number  Height  Depth  Length
 1486D18SS          6.00  6.00  18.00
 1486D24SS  6.00  6.00  24.00
 1486D30SS  6.00  6.00  30.00
 1486D36SS  6.00  6.00  36.00
 1486D48SS  6.00  6.00  48.00
 1486D60SS  6.00  6.00  60.00
 1486D72SS  6.00  6.00  72.00
 1486E12SS  8.00  8.00  12.00
 1486E24SS  8.00  8.00  24.00
 1486E36SS  8.00  8.00  36.00
 1486E48SS  8.00  8.00  48.00
 1486E60SS  8.00  8.00  60.00
 1486G24SS  12.00  12.00  24.00
 1486G36SS  12.00  12.00  36.00
 1486G48SS  12.00  12.00  48.00
 1486G60SS  12.00  12.00  60.00
