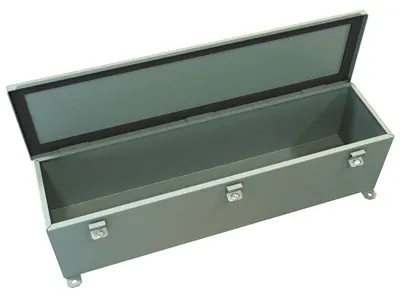

Type 4/12 Wiring Trough 1486 Series

Home / Wireway and Trough

Application

Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water.

Standards

UL-870 Type 1, 12, 4
CSA Type 1, 12, 4
Complies with
- NEMA Type 12, 4
- IEC 60529, IP66

Construction

Formed 14 gauge steel.
Smooth continuously welded seams.
Butt hinged cover is secured with easily operated stainless steel screw clamps.
Oil resistant gaskets are permanently secured.
12 gauge external mounting feet are welded to the back.

Finish

Troughs and covers are finished in ANSI 61 gray powder coating.

Tables Side by Side

Part Number	Height	Depth	Length
1486B12	2.50	2.50	12.00
1486B18	2.50	2.50	18.00
1486B24	2.50	2.50	24.00
1486B30	2.50	2.50	30.00
1486B36	2.50	2.50	36.00
1486B48	2.50	2.50	48.00
1486B60	2.50	2.50	60.00
1486B72	2.50	2.50	72.00
1486C12	4.00	4.00	12.00
1486C18	4.00	4.00	18.00
1486C24	4.00	4.00	24.00
1486C30	4.00	4.00	30.00
1486C36	4.00	4.00	36.00
1486C48	4.00	4.00	48.00
1486C60	4.00	4.00	60.00
1486C72	4.00	4.00	72.00
1486D12	6.00	6.00	12.00

Part Number	Height	Depth	Length
1486D18	6.00	6.00	18.00
1486D24	6.00	6.00	24.00
1486D30	6.00	6.00	30.00
1486D36	6.00	6.00	36.00
1486D48	6.00	6.00	48.00
1486D60	6.00	6.00	60.00
1486D72	6.00	6.00	72.00
1486E12	8.00	8.00	12.00
1486E24	8.00	8.00	24.00
1486E36	8.00	8.00	36.00
1486E48	8.00	8.00	48.00
1486E60	8.00	8.00	60.00
1486G24	12.00	12.00	24.00
1486G36	12.00	12.00	36.00
1486G48	12.00	12.00	48.00
1486G60	12.00	12.00	60.00
