Application

• • Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
  • All sections and fittings are completely open on each side to allow wires and cables to be placed into the wireway without "pulling through".

Standards

• UL-870 Type 1
• cUL Type 12
• Complies with
  • IEC 60529, IP54

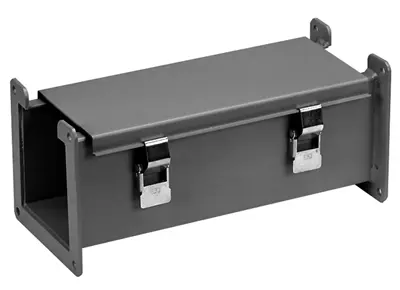

Construction

• • Bodies and covers are formed from 14-gauge steel with 10 gauge steel flanges.
  • Flanges are open at the top to allow cables to lay in when doors open.
  • 12” x 6” size has a 12 gauge steel body with a 14-gauge cover.
  • Smooth continuously welded seams.
  • Interior surfaces are smooth to prevent wire damage during
    installation.
  • Butt hinged cover is secured with easily operated quick release clamps.
  • Oil resistant gaskets are permanently secured.
  • Solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
  • One gasket kit, complete with hardware is provided with each straight section or fitting.
  • Sealing plate is supplied.
  • Flange junctions are sealed with gasket sealing plates, which are put in place after wiring is completed. One is supplied with all straight sections and most fittings; see table for exact number.

Construction - Hinge Cover

• Formed from 16 or 14 gauge steel
• Hinge covers are hinged on 24" centers
• Available with or without knockouts
• Straight sections are provided with adequate concentric knockouts (1/2", 3/4" conduit size)
• Knockouts are on 12" centers
• Joiner is included with each straight section
• Unobstructed interior speeds up laying of cables
• Optional hanger brackets allow for vertical or horizontal mounting

Finish

• Sections and components are finished in ANSI 61 gray.


Notes

• • When joining a wireway section or fitting to an enclosure be sure to order a box connector.
  • When joining two wireway sections, or joining a wireway section to a fitting, a flat sealing plate is required at each junction; necessary kits are supplied with each section and fitting. See table, extra kits may be ordered if necessary.
  • When joining a lay-in wireway section or fitting to a closure plate, a box connector, or cut-off fitting, an angle sealing plate is required at each junction.
  • Necessary kits are supplied with each section and fitting - see table. Extra kits, although not normally required, are necessary when joining lay-in wireway to a non-lay-in section or fitting section.
